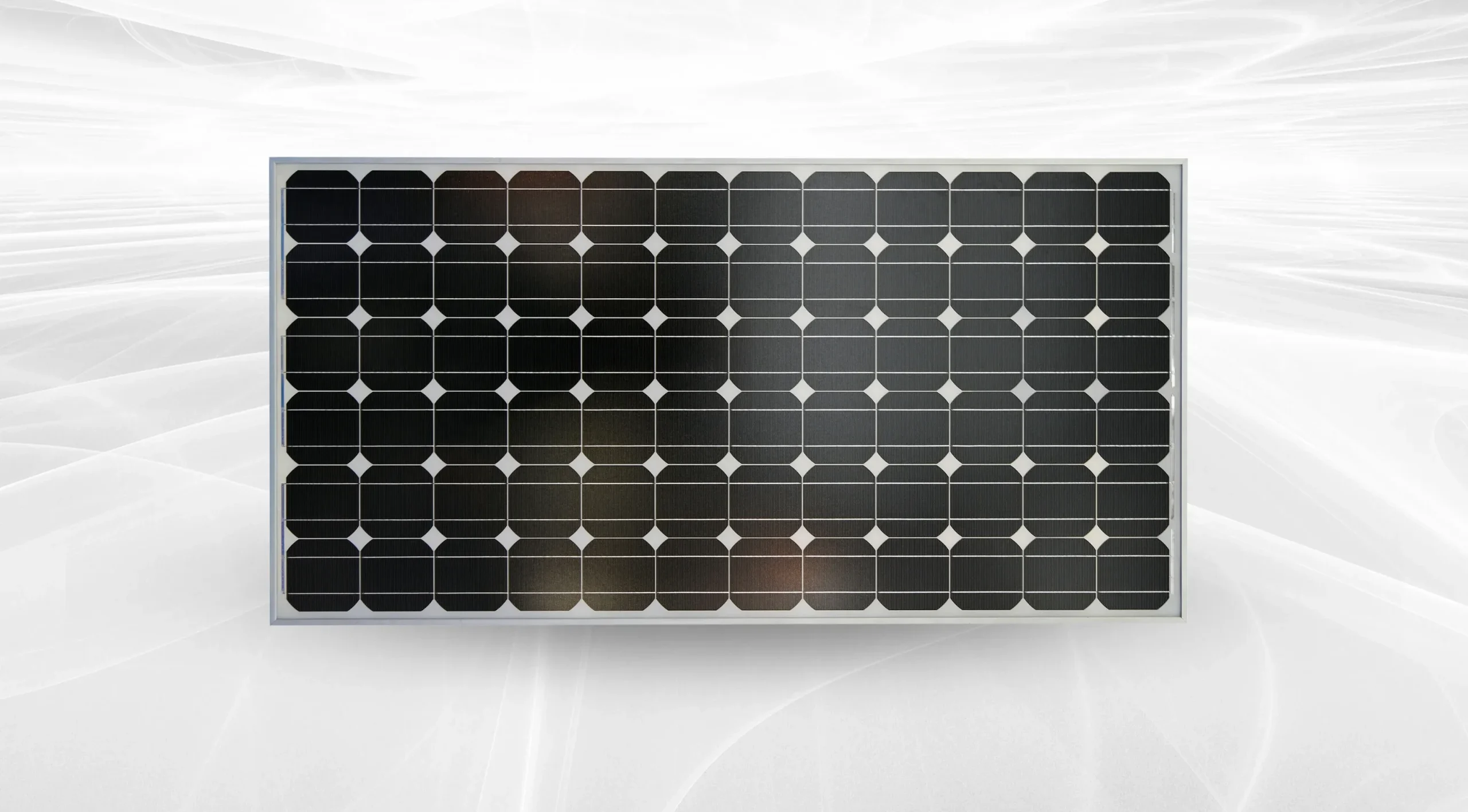

High-performance mono PERC half-cut modules from Kaumo Solar, built on M10 cells with robust mechanicals for Indian conditions. Ideal for residential, commercial, and utility projects.
High‑performance mono PERC half‑cut modules from Kaumo Solar, built on M10 cells with robust mechanicals for Indian conditions. Ideal for residential, commercial, and utility projects.
Measured at STC (1000 W/m², 25°C, AM 1.5). Tolerance ±3%.
| Model | Power (Pmax) | Cells | Voc | Isc | Vmp | Imp | Efficiency | Series Fuse | Max System Voltage |
|---|---|---|---|---|---|---|---|---|---|
| KSM55-36 | 55 W | 36 | 24.91 V | 2.72 A | 22.07 V | 2.51 A | >17% | 6 A | 1000 VDC |
| KSM60-32 | 60 W | 32 | 22.14 V | 3.39 A | 19.62 V | 3.14 A | >18% | 6 A | 1000 VDC |
| KSM75-32 | 75 W | 32 | 22.11 V | 4.49 A | 19.54 V | 4.12 A | >19% | 6 A | 1000 VDC |
| KSM120-32 | 120 W | 32 | 22.02 V | 6.78 A | 19.52 V | 6.21 A | >19% | 10 A | 1000 VDC |
| KSM240-64 | 240 W | 64 | 22.09 V | 13.59 A | 18.89 V | 12.72 A | >20% | 20 A | 1000 VDC |
| KSM275-72 | 275 W | 72 | 24.91 V | 13.59 A | 22.07 V | 12.54 A | >20.5% | 20 A | 1000 VDC |
| KSM450-120 | 450 W | 120 | 41.01 V | 13.41 A | 35.16 V | 12.78 A | >21% | 20 A | 1500 VDC |
| KSM500-132 | 500 W | 132 | 45.27 V | 13.48 A | 38.87 V | 12.86 A | >21% | 20 A | 1500 VDC |
| KSM550-144 | 550 W | 144 | 50.49 V | 13.69 A | 42.68 V | 12.88 A | >21% | 20 A | 1500 VDC |
| KSM590-156 | 590 W | 156 | 53.51 V | 13.47 A | 45.99 V | 12.85 A | >21% | 20 A | 1500 VDC |
| Model | Length (mm) | Width (mm) | Thickness (mm) | X Pitch (mm) | Y Pitch (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| KSM55-36 | 405 | 775 | 30 | 205 & 300 | 375 | 3.38 |
| KSM60-32 | 435 | 775 | 30 | 205 & 300 | 405 | 3.75 |
| KSM75-32 | 555 | 775 | 30 | 205 & 300 | 525 | 4.56 |
| KSM120-32 | 790 | 775 | 30 | 745 | 400 & 600 | 6.45 |
| KSM240-64 | 1540 | 775 | 35 | 745 | 800 | 12.25 |
| KSM275-72 | 1735 | 775 | 35 | 745 | 990 & 1400 | 13.58 |
| KSM450-120 | 1920 | 1134 | 35 | 1090 | 990 & 1400 | 24.5 |
| KSM500-132 | 2094 | 1134 | 35 | 1090 | 990 & 1400 | 26.65 |
| KSM550-144 | 2278 | 1134 | 35 | 1090 | 990 & 1400 | 29 |
| KSM590-156 | 2465 | 1134 | 35 | 1090 | 990 & 1600 | 31 |
Dimensions and weight are typical values; minor variations may occur.
| Specification | Data |
|---|---|
| Temperature Coefficient (Pmax) | -0.36% / °C |
| Temperature Coefficient (Voc) | -0.36% / °C |
| Temperature Coefficient (Isc) | +0.06% / °C |
| Nominal Operating Cell Temperature (NOCT) | 42 ± 2 °C |
Note: Specifications may change without prior notice.
