Kaumo Solar | On‑Grid Inverters

Three‑Phase On‑Grid Inverter (5–12 kW)

Kaumo Solar three‑phase grid inverters deliver high efficiency, zero‑export capability and IP65 durability for commercial rooftops, apartments and MSMEs.

BIS Certified*
10 Years Warranty
Easy to Service
Cloud Based Monitoring
Zero‑Export & VSG Application
Low Start‑up Voltage (as low as 80 V)
20 A String Current
Inbuilt Wi‑Fi/GPRS (optional)
IP65 — Suited for Outdoor
View Specifications +91 81268 07113

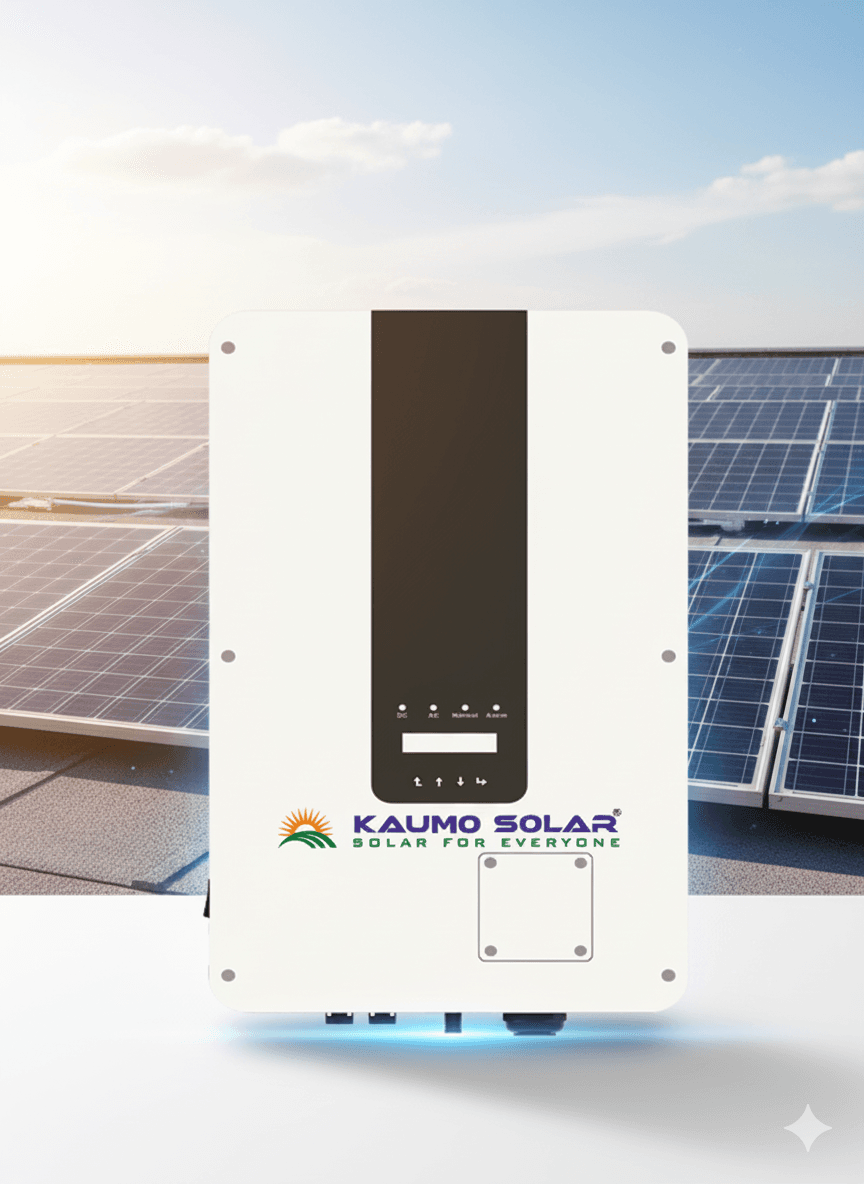

Kaumo Solar Three-Phase On-Grid Inverter

Models & Quick Specs

Choose a model to preview its data

Rated Power
8 kW
PV Max
10.4 kW
MPPTs / Strings
2 / 1+1
Start Voltage
140 V
Max Eff.
98.30%
IP Rating
IP65

GT 8.0K‑3P — Detailed Specifications

PV Input
Max DC Input Power
10.4 kW
Max / Start Voltage
1100 V / 140 V
MPPT Operating Range
120–1000 V
Max DC Input Current
20+20 A
Max Short‑Circuit Current
30+30 A
MPPT Trackers / Strings
2 / 1+1
AC Output
Rated / Max Active Power
8 kW / 8.8 kW
Rated Voltage
400 V AC (3P + N + E)
Frequency
50/60 Hz (optional)
Phase
Three Phase
Rated / Max Grid Current
12.1 / 11.6 A / 13.3 / 12.7 A
Power Factor Range
0.8 leading to 0.8 lagging
THDi
<0.3%
Grid Frequency Range
45–55 Hz
Efficiency & Build
Max / Euro Efficiency
98.30% / 97.50%
MPPT Efficiency
>99%
Enclosure (W×H×D)
330 × 457 × 203 mm
Weight
11 kg
Ingress Protection
IP65
Cooling / Topology
Natural cooling / Transformerless
Operating Temp
−25°C to +60°C (derating > +45°C)
Altitude (no derating)
≤ 4000 m
Protection
Anti‑Islanding
Yes
DC Reverse Polarity
Yes
AC Short‑Circuit / Overcurrent
Yes / Yes
Output Over‑voltage
Yes
Insulation / Ground Fault Monitoring
Yes / Yes
Surge Protection
DC Type II / AC Type II
Integrated DC Switch
Yes
Remote SW Upload / Params
Yes / Yes
Monitoring & Interface
Display
LCD1602
Interfaces
RS485 / RS232 / Wi‑Fi / GPRS
Cloud Monitoring
Wi‑Fi / GPRS (optional)
Noise (typ.)
≤ 36 dB
Standby (night)
<1 W
Certifications
IEC 62116, IEC 61727, IEC 60068, IEC 61683, IEC 61000, IEC 62109‑1/‑2
Humidity
0–100%

Specs compiled from your datasheet image; values may change without prior notice.

Compare All Models

Quick view across the range

ModelRated Power (kW)PV Max (kW)MPPTs / StringsStart V (V)PV Imax (A)Rated Grid I (A)Max Eff.Size (mm)Weight
GT 5.0K‑3P56.52 / 1+114020+207.6 / 7.2 A98.30%330 × 457 × 203 mm11 kg
GT 6.0K‑3P67.82 / 1+114020+209.1 / 8.7 A98.30%330 × 457 × 203 mm11 kg
GT 8.0K‑3P810.42 / 1+114020+2012.1 / 11.6 A98.30%330 × 457 × 203 mm11 kg
GT 10K‑3P10132 / 1+125020+2015.2 / 14.5 A98.30%330 × 457 × 203 mm11 kg
GT 12K‑3P1215.62 / 1+125020+2018.2 / 17.4 A98.30%330 × 457 × 203 mm11 kg

Need string design or zero‑export setup?

Kaumo Solar will configure CTs and export limits per your DISCOM.
