Clean Energy:
Kaumo Solar

Single Phase Hybrid Inverter Kaumo Solar

Single Phase Hybrid Inverter

Kaumo Solar | Hybrid Inverters

Single‑Phase Hybrid Inverter (3–10 kW)

Kaumo Solar single‑phase hybrids combine PV, grid and battery for seamless backup and high self‑consumption—ideal for homes, clinics, shops and offices requiring reliable power.

Rated Power
5,000 W
PV Max Power
8,000 W
Battery Range
40–60 V
MPPTs / Strings
2× MPPT (1+1 strings)
Max Efficiency
97.6%
IP Rating
IP65
View Technical Data +91 81268 07113

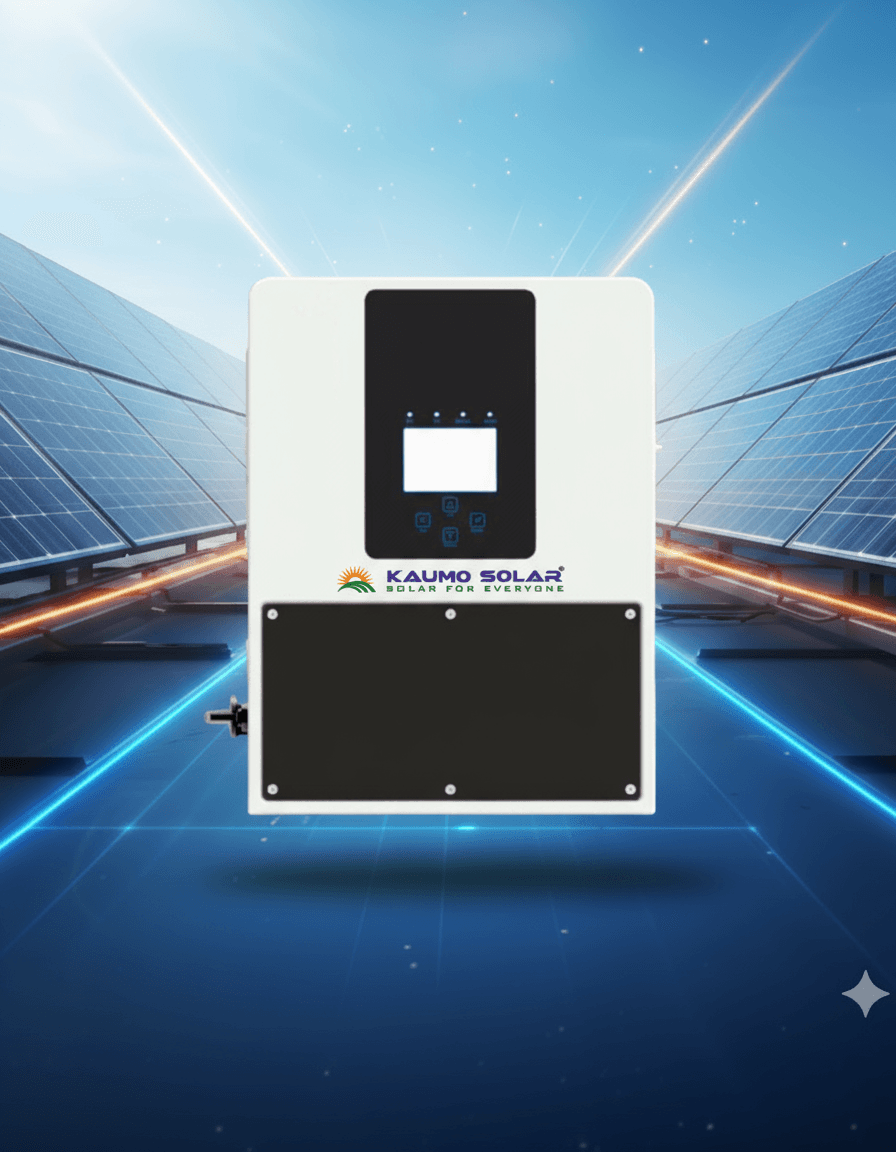

Kaumo Solar Single-Phase Hybrid Inverter
BIS Certified
Easy to Service
Cloud‑Based Monitoring
5 Years Warranty
Transformerless Design
Parallel up to 10 Units
Remote Monitoring / Control
Lead / Lithium Battery Support
Minimum Losses, High Efficiency

Technical Data (Selected Model)

5kW quick specifications

Battery Input
Battery Type
Lead‑acid or Lithium‑ion
Voltage Range
40–60 V
Max Charge/Discharge
120 A / 120 A
Li‑ion Strategy
Self‑adaption to BMS
Inputs
1
PV Input
Max PV Power
8000 W
Max/Start/MPPT Range
500 V / 125 V / 150–425 V
Rated PV Voltage
370 V
Max PV Input Current
18+18 A
Max PV Short‑Circuit
27+27 A
Trackers / Strings
2× MPPT (1+1 strings)
AC Input/Output
Rated Apparent Power
6250 VA @ 0.8 PF
Rated Output Power
5000 W
Rated / Max Current
21.8 A / 24 A
Voltage Range
220/230 Vac (0.85Un–1.1Un)
Frequency
50–60 Hz
Connection Form
L–N–PE
THDi
<3% of nominal power
Off‑grid Peak Power
2× rated power, 10 s
Power Factor Range
0.8 leading to 0.8 lagging
Efficiency & Build
Max / Euro Efficiency
97.6% / 96.5%
MPPT Efficiency
>99%
IP Rating
IP65
Topology
Non‑isolated
Cooling
Natural cooling
Cabinet (W×H×D)
330 × 580 × 232 mm
Weight
24.9 kg
Protection
DC/AC Surge
Type II (DC), Type II (AC)
Equipment Protection
PV reverse polarity, AC over‑current, thermal, AC over‑voltage, AC short‑circuit, anti‑islanding, battery polarity, SPD inbuilt
Interfaces & Environment
Interfaces
RS485 / RS232 / CAN
Remote Monitoring
GPRS / Wi‑Fi (Cloud)
Operating Temp
−40°C to +60°C (derating > +45°C)
Humidity / Altitude
0–100% RH / ≤ 2000 m
Standards
BIS compliant (model dependent)

Specs are compiled from the provided datasheet image; values may change without prior notice.

All Models Overview

Compare ratings across the range

ModelRated Power (W)PV Max Power (W)MPPTs / StringsPV Max Iin (A)PV Isc (A)Rated Current (A)Max Current (A)Max Eff.Cabinet (mm)Weight
3kW3,0004,8001× MPPT (1 string)182713.114.497.6%330 × 433 × 229 mm17 kg
3.6kW3,6005,7601× MPPT (1 string)182715.717.397.6%330 × 433 × 229 mm17 kg
5kW5,0008,0002× MPPT (1+1 strings)18+1827+2721.82497.6%330 × 580 × 232 mm24.9 kg
6kW6,0009,6002× MPPT (1+1 strings)18+1827+2726.128.797.6%330 × 580 × 232 mm24.9 kg
8kW8,00012,8002× MPPT (2+2 strings)26+2634+3434.838.397.6%420 × 670 × 233 mm35.6 kg
10kW10,00016,0002× MPPT (2+2 strings)26+2634+3443.547.997.6%420 × 670 × 233 mm35.6 kg

Applications

Where a Kaumo Solar hybrid inverter fits best

Homes & Villas

Run essentials during outages and cut bills with self‑consumption.

Clinics & Shops

Protect PoS, refrigeration, and lighting with seamless backup.

Offices & IT Rooms

Keep networking, PCs and servers powered; enable zero‑export if required.

Apartments & Societies

Common area backup with parallel units up to 10 systems.

Downloads & Notes

Tip: For net‑metering or zero‑export compliance, we configure CTs and export limits as per DISCOM policy.
